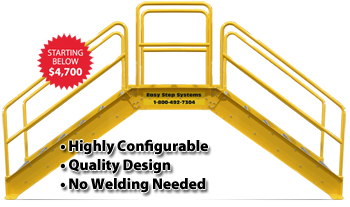

STAIR CROSSOVERS -- Easy to assemble, NO WELDING REQUIRED!

Our stairway crossovers are engineered for maximum strength, made with a strong steel frame, and specially coated safety yellow using Plascoat RAL 1021 Polyolefin PPA571EA. EasyStep stair crossovers are available in 3', 4', 5', 7', or 9' standard sizes, but can be reconfigured to any size or shape to fit your need. Please call for quote. Custom stairway crossovers are not a problem!



APPLICATIONS for stair crossovers:

  • Work cell crossovers
  • Production access crossovers
  • Industrial/Manufacturing
  • Oil field crossover
  • Midstream pipeline crossovers
  • Conveyor thru-way crossovers
  • Truck enter/exit crossovers

Specifications for stair crossovers:

  • Powder coated safety yellow, aluminum grip strut decking and stair tread
  • No welding during assembly is required
  • Strong steel frame
  • Improved clearance
  • Fully customizable
  • Made in the U.S.A.

STANDARD CONFIGURATIONS FOR STAIR CROSSOVERS
STAIR ID NUMBER OF PLATFORM UNDER PLATFORM OVERALL
  8” RISERS HEIGHT CLEARANCE LENGTH LENGTH
5T 6 4’0” 3’6” 3 feet 12’4”
8T 9 6’0” 5’6” 3 feet 17’10”
11T 12 8’0” 7’6” 3 feet 23’4”
14T 15 10’0” 9’6” 3 feet 28’10”
5T 6 4’0” 3’6” 4 feet 13’4”
8T 9 6’0” 5’6” 4 feet 18’10”
11T 12 8’0” 7’6” 4 feet 24’4”
14T 15 10’0” 9’6” 4 feet 29’10”
5T 6 4’0” 3’6” 5 feet 14’4”
8T 9 6’0” 5’6” 5 feet 19’10”
11T 12 8’0” 7’6” 5 feet 25’4”
14T 15 10’0” 9’6” 5 feet 30’10”
5T 6 4’0” 3’6” 7 feet 16’4”
8T 9 6’0” 5’6” 7 feet 21’10”
11T 12 8’0” 7’6” 7 feet 27’4”
14T 15 10’0” 9’6” 7 feet 32’10”
5T 6 4’0” 3’6” 9 feet 18’4”
8T 9 6’0” 5’6” 9 feet 23’10”
11T 12 8’0” 7’6” 9 feet 29’4”
14T 15 10’0” 9’6” 9 feet 34’10”
